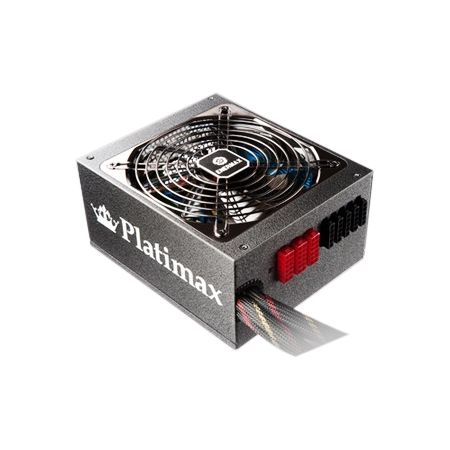

Enermax Platimax EPM750AWT ATX12V & EPS12V Power Supply Item # 473203
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
473203
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
EPM750AWT uses a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load.
Product Details
| Item # | 473203 |
| Manufacturer # | PF1234 |
| number of fans | 1 |
| height | 3.4 in |
| Power Factor Correction (PFC) | Active |
| Output Voltage | 3.3 V DC @ 24 A; 5 V DC @ 24 A; 12 V DC @ 25 A; -12 V DC @ 500 mA; 5 V DC @ 3 A |
| Product Line | Platimax |
| width | 5.9 in |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Output Power | 750 W |
| depth | 6.9 in |
| Product Name | Platimax EPM750AWT ATX12V & EPS12V Power Supply |
| Number of +12V Rails | 4 |
| manufacturer | Enermax Technology Corporation |
| Input Voltage Range | 100 V AC to 240 V AC |
| Input Current | 9 A @ 110V; 4.50 A @ 220V |
| weight | 3 lb |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | Enermax |
| protection type | Over Current; Over Voltage; Output Under Voltage; Over Power; Over Temperature; Short Circuit; Surge; Inrush Current; Under Voltage |
| Input Voltage | 110 V AC; 220 V AC |
| Input Voltage Type | AC |
| length | 10 in. |
| Output Current | +3.3V - 24 A ¦ +5V - 24 A ¦ +12V1 - 25 A ¦ +12V2 - 25 A ¦ +12V3 - 25 A ¦ +12V4 - 25 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A |
| form factor | Internal |
| MTBF | 100000 Hour |
| Receptacles | 1 x 24-pin ATX Motherboard; 1 x 4+4pin ATX12V Motherboard; 1 x 8-pin EPS12V Motherboard; 4 x 6+2pin PCI-E; 12 x Serial ATA; 8 x 4-pin LP4 Peripheral Device; 1 x 4-pin SP4 Floppy Drive |
| color | dark gray |
| Modular | Yes |
| warranty length | 5-year limited |
| model name | EPM750AWT |
| Efficiency | 94% |
| Show More ▾ |
